- About 4 hours per charge A 418 Wh battery at 28.8 V runs about 4 hours with no load, against about 1.5 hours on the standard Black Panther X.
- About 50 N·m joints Its 12 joints reach about 50 N·m of torque, against about 33 N·m on the standard edition, at the same 4 m/s top speed, 20 cm climbs and 30° slopes.
- About 8 kg of payload It carries about 8 kg on its expansion dock and perception head, where the standard edition takes about 5 kg, leaving room for an on-board computer, sensors and custom payloads.

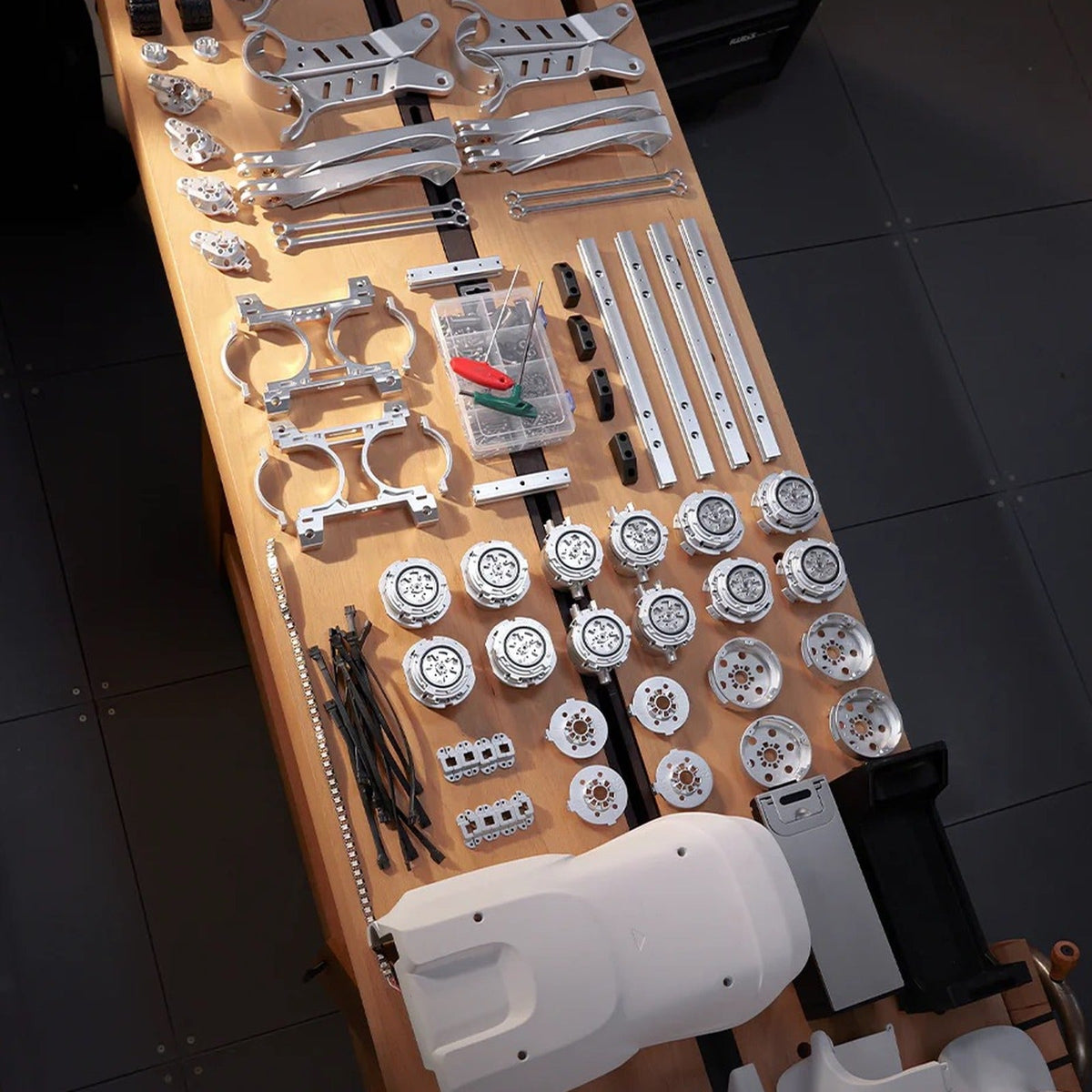

- The same 200+ module build Like the standard edition it is made of over 200 functional modules with 12 independent joints, each one removable, replaceable and upgradeable.
- Open for development Interfaces, shells and code are open, with a motion-control SDK, graphical programming, app control and reinforcement-learning training of gaits and motions.
- Built without special tools Standardised modules with unified interfaces go together without specialist tools, following MirrorMe's assembly manual and drawings.
Description

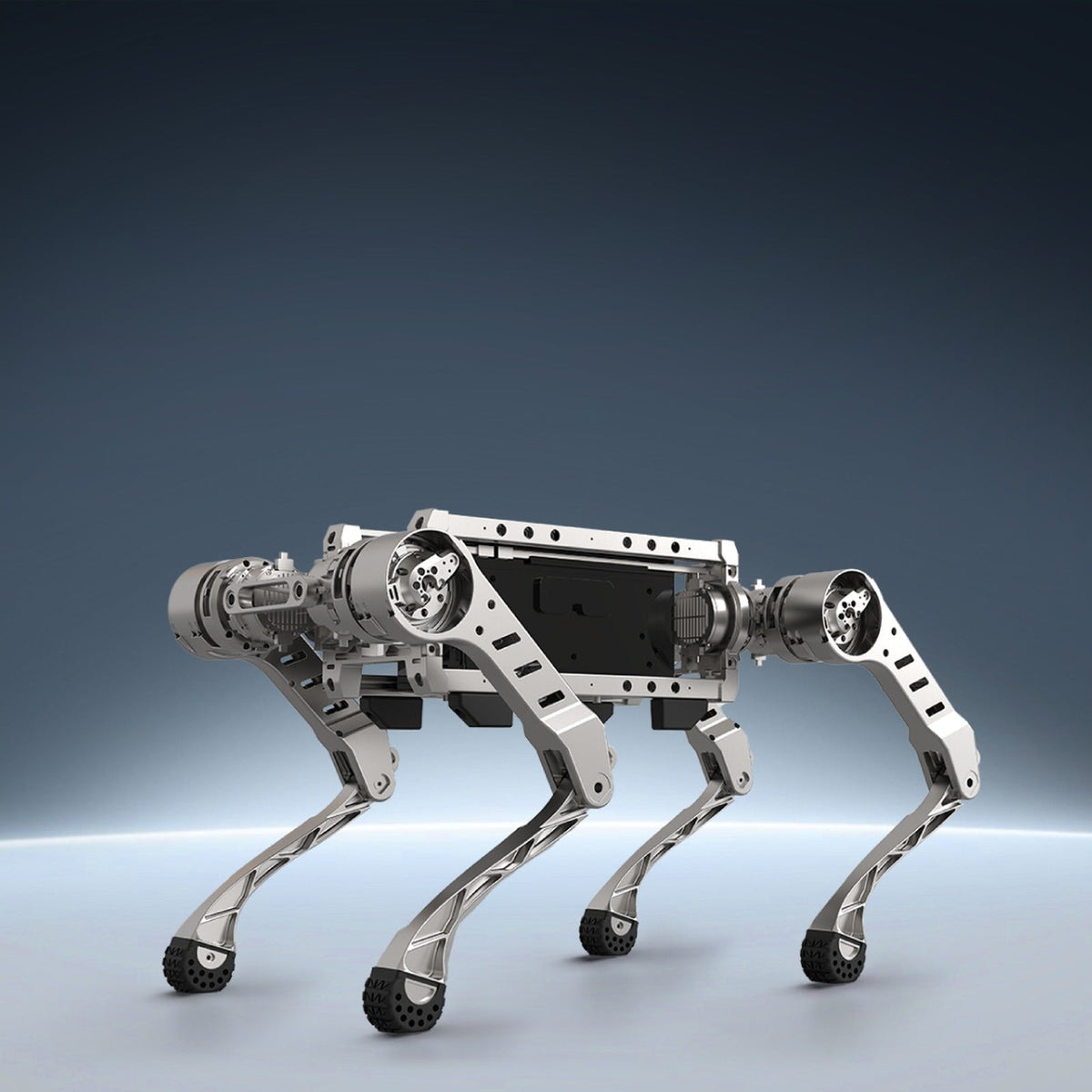

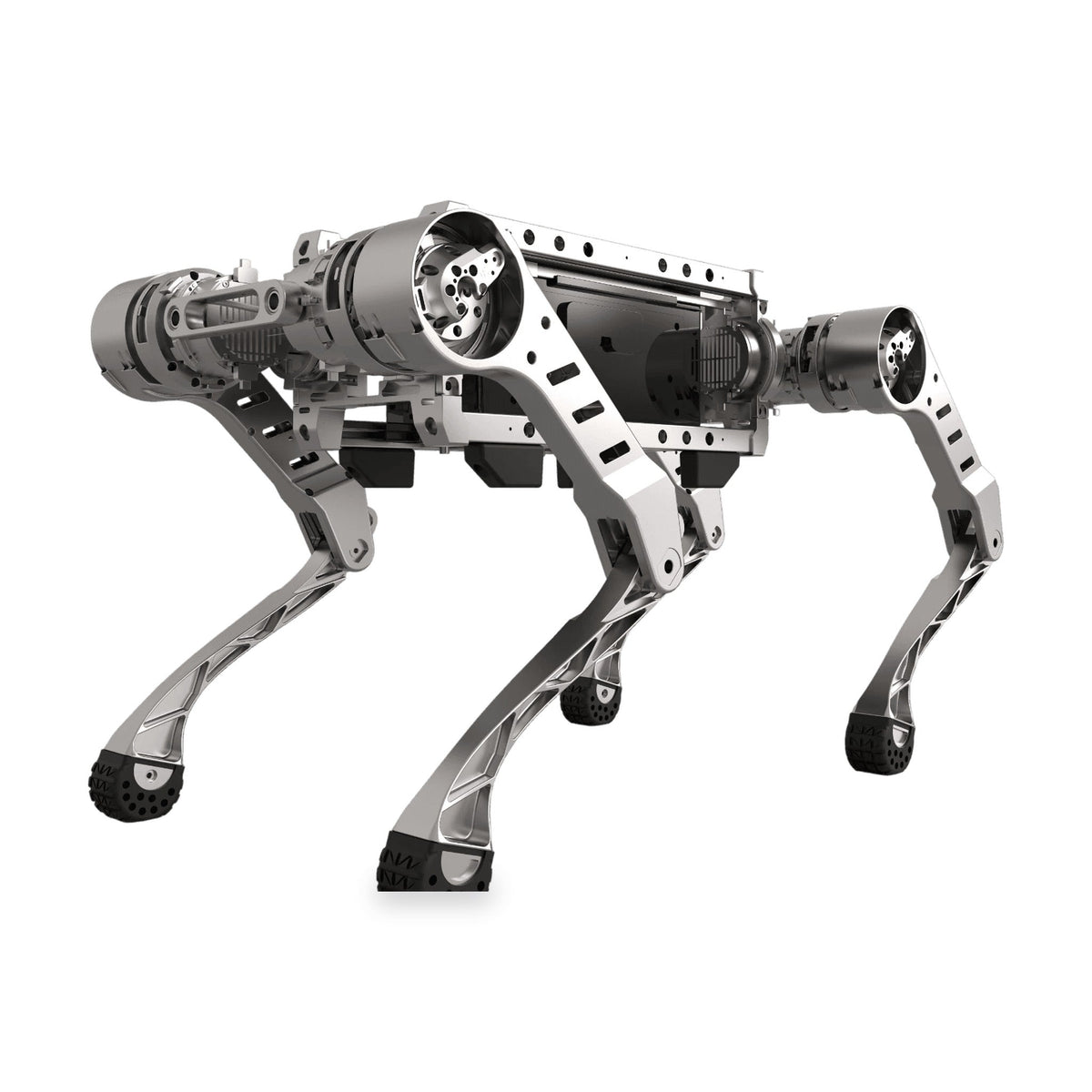

The MirrorMe Black Panther X Pro (BPX-PRO) is the long-runtime edition of MirrorMe's build-it-yourself robot dog. It keeps the Black Panther X's modular design of more than 200 functional modules, with 12 independent high-performance joints, an open perception head and an expansion dock, and steps up to a 418 Wh battery for about 4 hours per charge.
Its joints reach about 50 N·m and it carries about 8 kg, against about 33 N·m and 5 kg on the standard edition, with the same top speed of 4 m/s, 20 cm climbs and 30° slopes. It weighs 17.5 kg and measures 660 × 390 × 480 mm standing.
That headroom is what longer lab sessions and heavier sensor payloads need. A university team running locomotion or reinforcement-learning experiments, or a developer mounting a computer, LiDAR and cameras, gets the same open interfaces, shells and code as the standard edition, with more time and load to work with.
For first builds in a classroom where 1.5 hours per charge is enough, the standard Black Panther X uses the same build with a 167 Wh battery.
Key Capabilities
- Long runtime: A 418 Wh battery for about 4 hours with no load.
- More torque and load: About 50 N·m joints and about 8 kg of payload.
- Modular build: Over 200 functional modules, assembled without special tools.
- Open development: Motion-control SDK, graphical programming, app control and open code.
- Expandable: An expansion dock and open perception head for sensors, computers and payloads.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Official Product Videos
Features
Specs
| Brand | MirrorMe |
|---|---|
| Model | Black Panther X Pro (BPX-PRO) |
| Robot type | Modular, build-it-yourself quadruped robot |

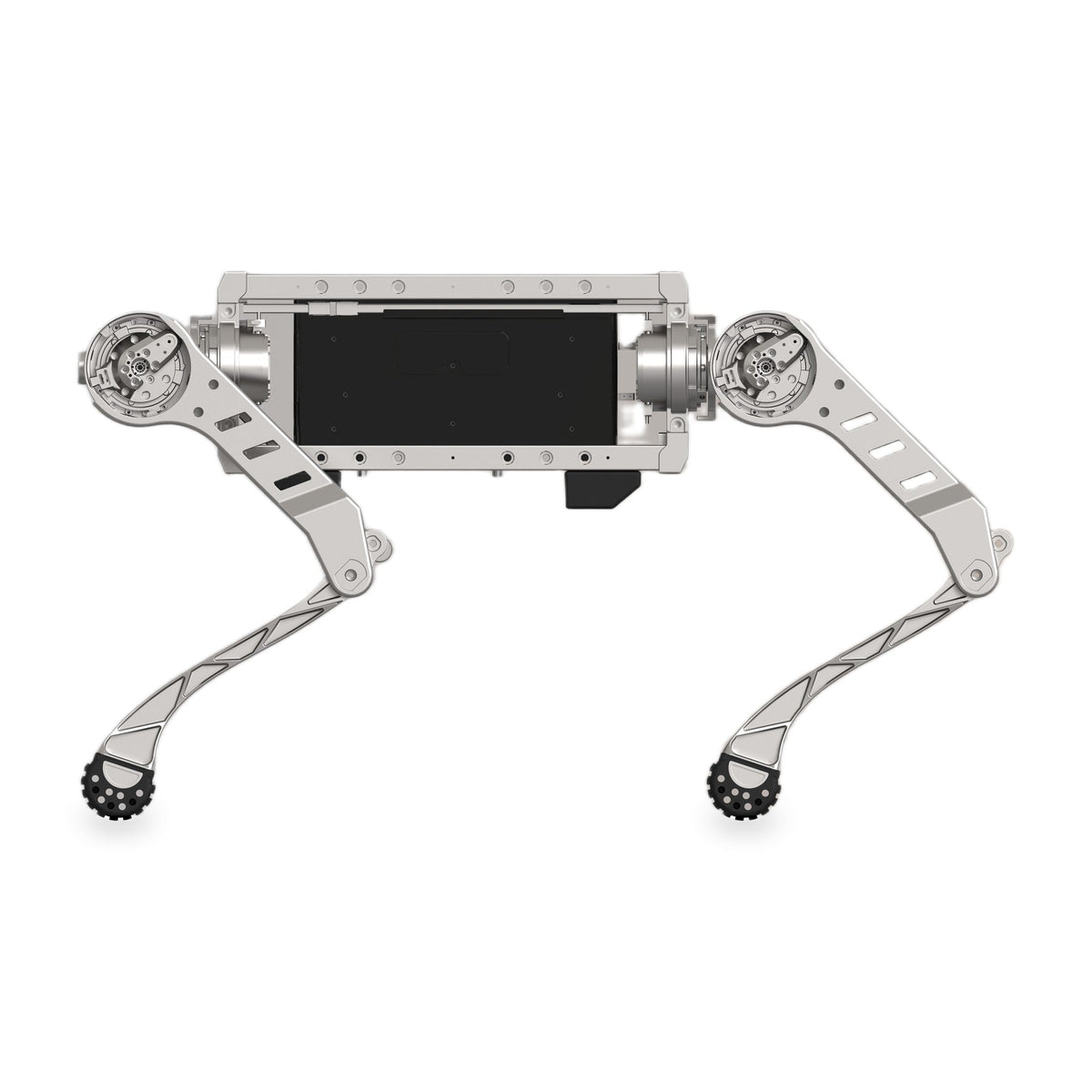

| Standing dimensions (L × W × H) | 660 × 390 × 480 mm |
| Crouching dimensions (L × W × H) | 790 × 390 × 190 mm |
| Weight (including battery) | 17.5 kg |
| Material | High-strength aluminium alloy and engineering plastics |
| Nominal voltage | 28.8 V |
| Battery | 418 Wh |
| Endurance (no load) | About 4 hours |
| Maximum payload | About 8 kg |
| Speed | 0–4 m/s |
| Maximum climbing height | About 20 cm |
| Maximum climbing angle | 30° |
| Maximum joint torque | About 50 N·m |
| Degrees of freedom | 12 |
| Side-swing joint range | −50° to 50° |
| Hip joint range | −149° to 45° |
| Knee joint range | 21° to 147° |
| Modules | Over 200 functional modules, including 12 independent joints, an open perception head and an expansion dock |
| Assembly | Standardised modules with unified interfaces, no special tools; MirrorMe assembly manual and drawings |
| Development | Motion-control SDK, graphical programming and app control; open interfaces, shells (3D files) and code |
| Expansion | Third-party sensors, cameras and payloads; autonomy with an added sensor set and external computer (e.g. NVIDIA Jetson Orin, Raspberry Pi) |
Industries
Product Brochure
MirrorMe Black Panther X Pro Modular Quadruped Robot – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The MirrorMe Black Panther X Pro Modular Quadruped Robot is priced at 51.250 kr in your market. For classroom sets or project orders, contact us for a business quote.
More battery, torque and payload: 418 Wh for about 4 hours instead of 167 Wh and 1.5 hours, about 50 N·m joints instead of 33 N·m, and about 8 kg of payload instead of 5 kg. It weighs 17.5 kg (15.1 kg for the standard Black Panther X) and is 390 mm wide instead of 370 mm. The modular build, 4 m/s top speed, 20 cm climbs and 30° slopes are the same.
Teams that need longer sessions or heavier payloads: university labs running locomotion or reinforcement-learning experiments, developers mounting a computer, LiDAR or cameras, and classrooms that use one robot for a whole day of lessons.
The Black Panther X family is designed to be assembled by its owner from standardised modules, without special tools and with MirrorMe's assembly manual and drawings. MirrorMe also offers it pre-assembled; whether your unit ships as a kit or assembled is confirmed with your order.
Its expansion dock and open perception head take third-party sensors, cameras and payloads, up to about 8 kg in all. Adding a LiDAR and an external computer such as an NVIDIA Jetson Orin or a Raspberry Pi is how teams make the remote-controlled base autonomous.
Through MirrorMe's motion-control SDK, graphical programming or the app. Interfaces, shells and code are open, so gaits, control logic and reinforcement-learning-trained motions can all be your own.
